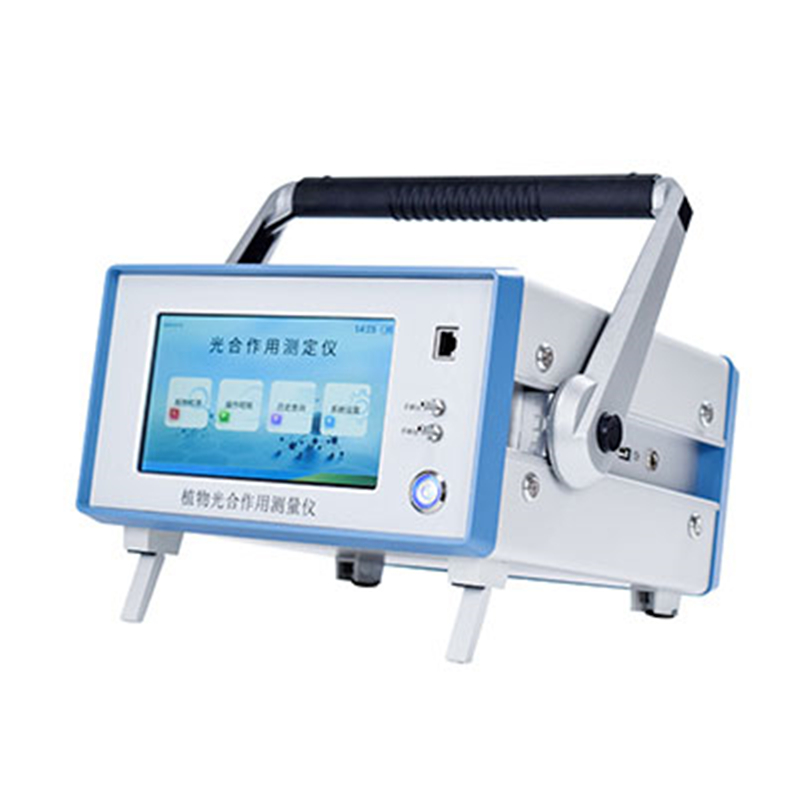

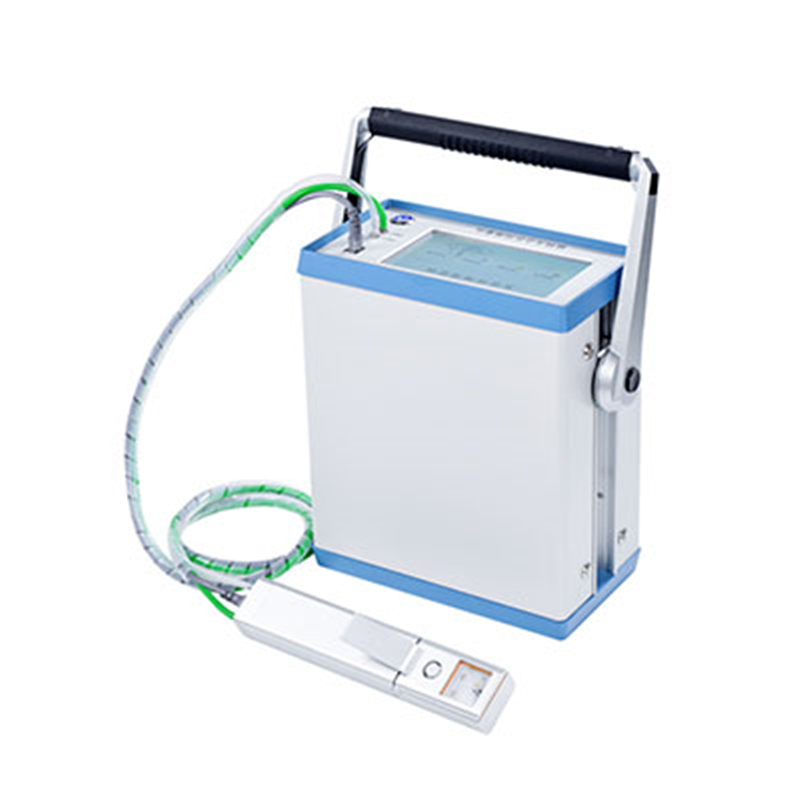

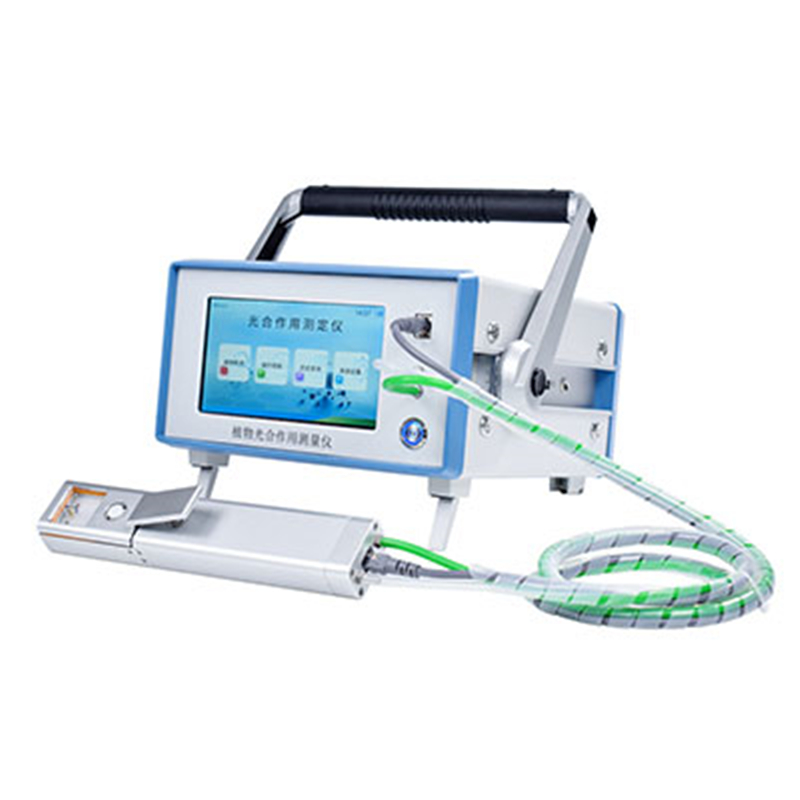

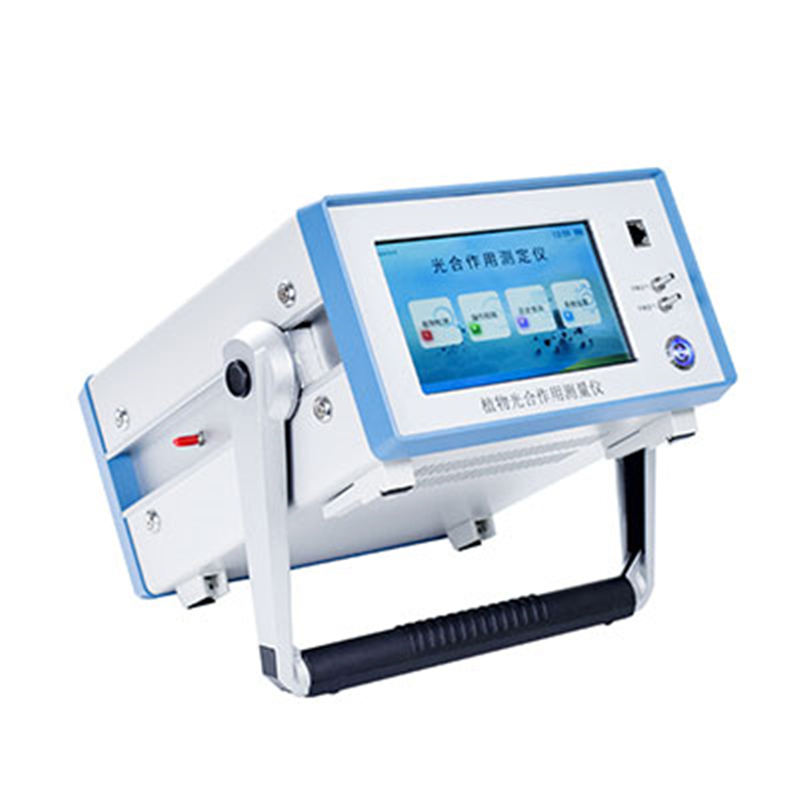

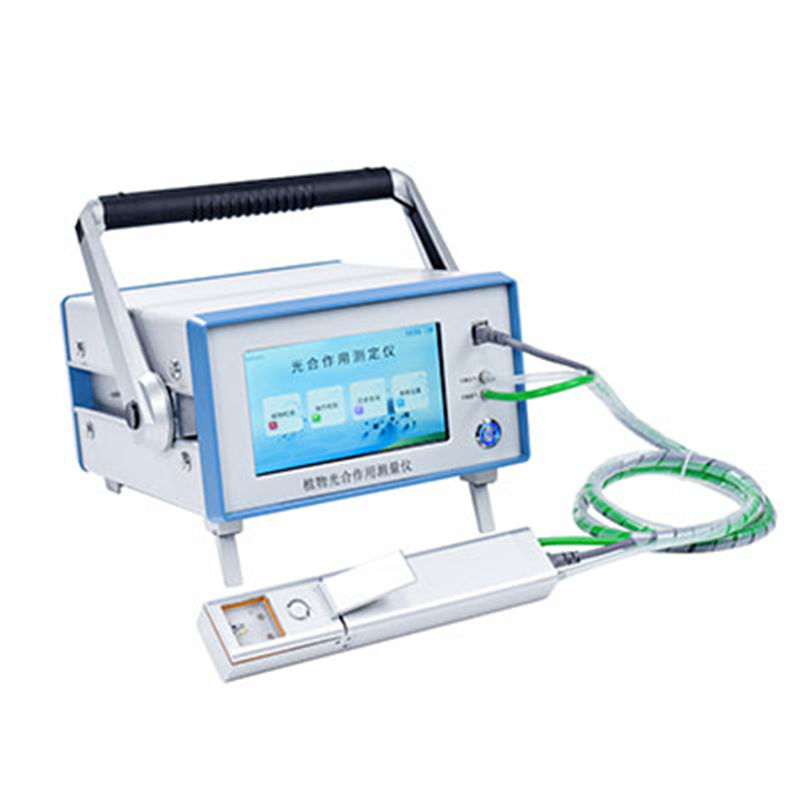

Photosynthesis Analyzer IN-GH1
Product features
• Intelligence: Adopting Android operating system and high-sensitivity touch screen. Efficient human-computer interaction, real-time display of measurement process, and better operational experience;
High stability: The dual wavelength infrared carbon dioxide analyzer, equipped with temperature regulation and atmospheric pressure measurement units, effectively improves the stability and accuracy of carbon dioxide. Effectively avoiding the drawbacks of excessive fluctuations in carbon dioxide values caused by temperature changes;
Multi functional: Simultaneously measure photosynthetic rate, transpiration rate, intercellular carbon dioxide concentration, stomatal conductance, and water use efficiency, as well as indicators such as carbon dioxide concentration, relative humidity, photosynthetically active radiation, air temperature, leaf temperature, and atmospheric pressure;
Customization: Users can customize and edit experimental notes according to their measurement needs;
Data analysis: After the experiment is completed, multiple sets of data can be analyzed simultaneously for easy comparison of experimental data;
Large screen: 7-inch high-sensitivity touch screen, user-friendly interface, providing users with better data display.
• Data export: Supports copying data from USB flash drives without driver insertion and removal.
Long battery life: It can be used continuously for 10-12 hours in the wild when fully charged.
• Convenience: Small size, light weight, portable with a suitcase, convenient for single person mobile testing;
Measurement parameters
Air CO2 concentration: Non diffusive infrared CO2 analysis measurement range 0-3000 μ mol/mol (ppm) resolution 0.0005 error ≤ 3% FS
Environmental temperature: Measurement range -20-80 ℃ Resolution 0.001 Error ≤± 0.2 ℃
Environmental humidity: measurement range 0-100% RH resolution 0.001 error ≤± 1% RH
Leaf chamber temperature: measurement range -20-80 ℃ resolution 0.001 error ≤± 0.2 ℃
Leaf chamber humidity: measurement range 0-100% RH resolution 0.001 error ≤± 1% RH
Leaf surface temperature: measurement range -20-60 ℃ resolution 0.001 error ≤± 0.2 ℃
Atmospheric pressure: Measurement range 30-110kPa Resolution: 0.01 Error ≤± 0.06kPa
Photosynthetically active radiation (PAR): measurement range 0-3000 μ mol/(m2 · s) resolution 0.001 error ≤± 5 μ mol/(m2 · s)
Photosynthetic rate (Pn): Unit: μ mol/(m2 · s) Resolution: 0.001
Pore conductance (Gs): Unit: mmol H2O/(m2 * s) Resolution: 0.001
Transpiration rate (Tr): Unit: mmol H2O/(m2 * s) Resolution: 0.001
Intercellular CO2 concentration (Ci): Unit: μ mol/mol Resolution: 0.001
Water use efficiency (WUE): Unit: μ molCO2/molH2O Resolution: 0.001
Respiratory rate (Rd): Unit: μ mol/(m2 * s) Resolution: 0.001
Transpiration ratio (TR): Unit: μ molH2O/mmolCO2 Resolution: 0.001
Instrument parameters
Leaf chamber size: standard 3.3 * 3.3cm
Main control chip: ARM Cortex-A7, RK3288/4-core, main frequency 1.88Ghz
Hardware memory: RAM 1G，ROM 16G
Data interface: USB interface
Power adapter: 100-240V, widely used both domestically and internationally.
Lithium battery capacity: 8000mAh
Charging indicator: Charging red light, fully charged green light
Host size: 312.3 * 308.5 * 186mm
Handle size: 250*30*48mm
Weight: The host weighs 4kg, and the handle weighs 0.7kg
