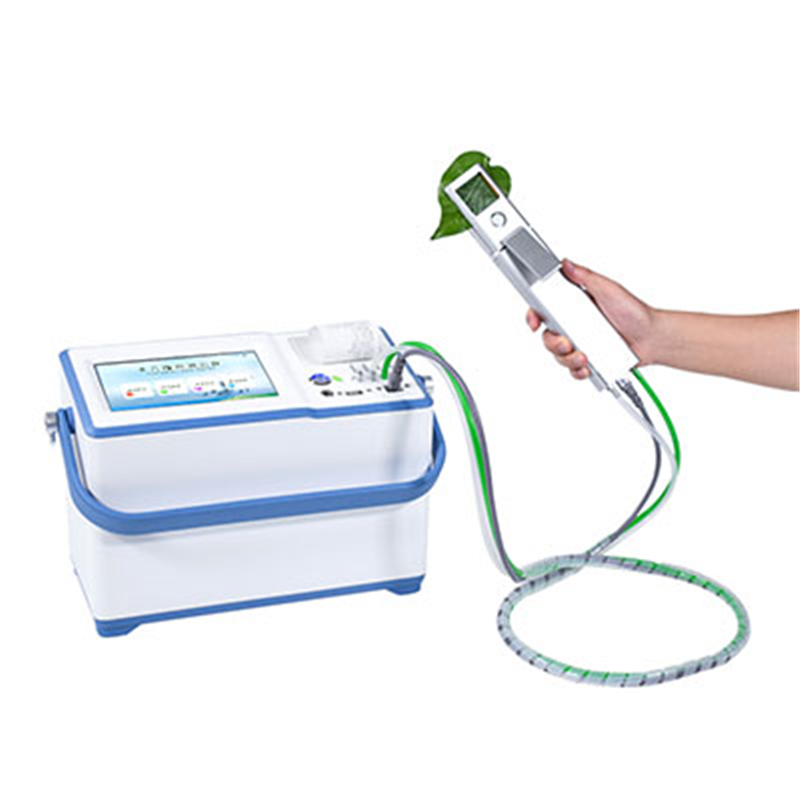

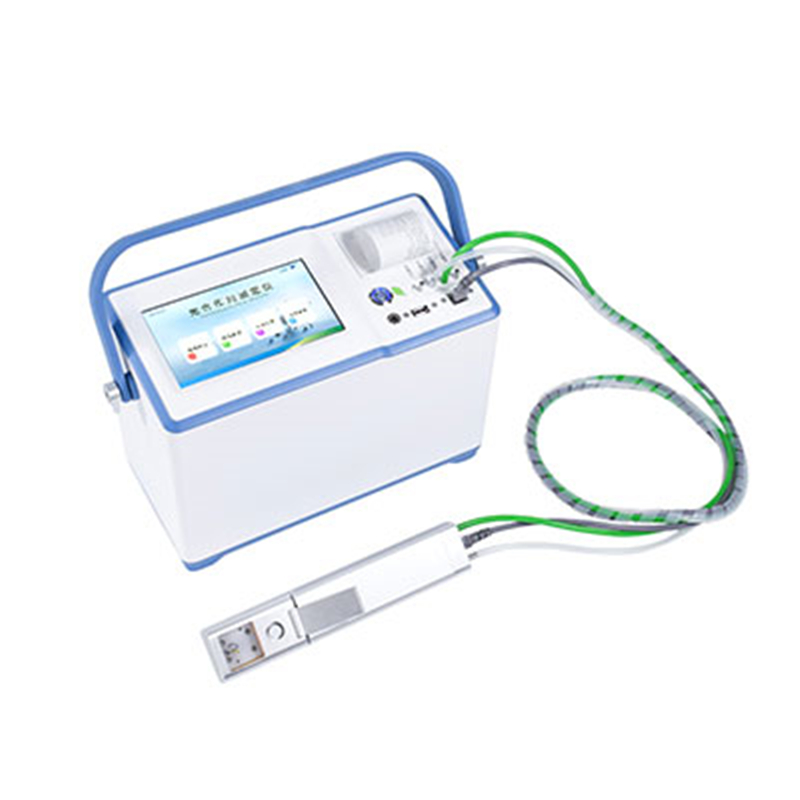

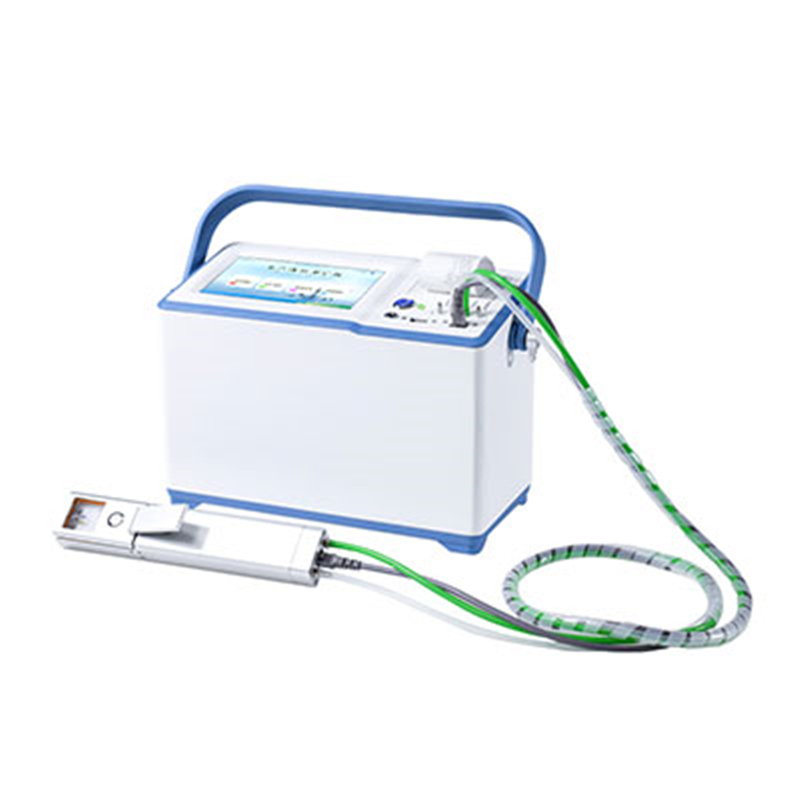

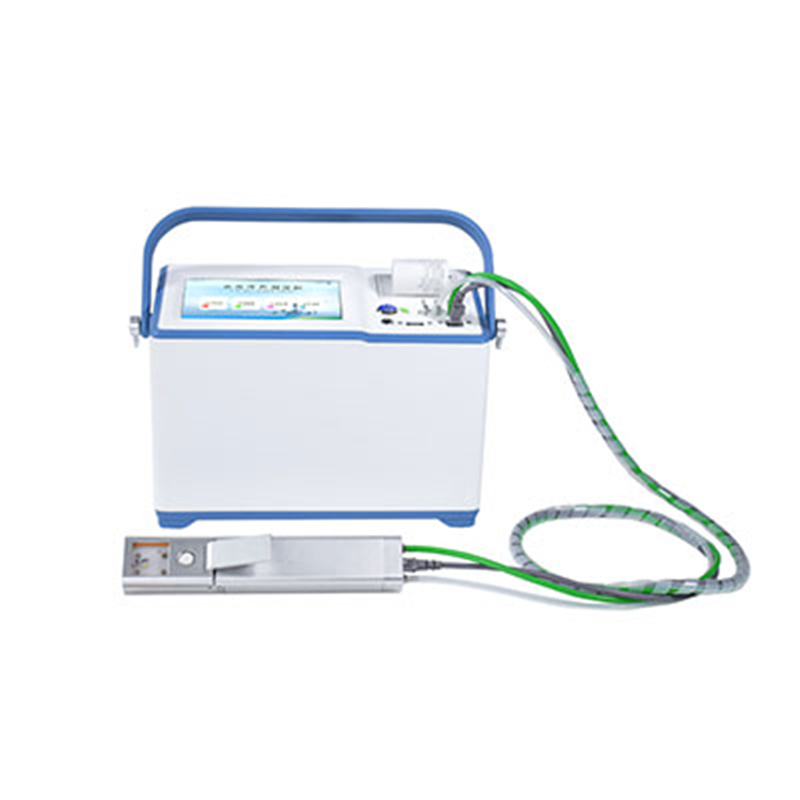

Portable Photosynthesis Meter IN-GH2
Product features
Intelligent Interaction: Equipped with an Android smart operating system and a highly sensitive touchscreen, it provides an intuitive human-computer interaction interface, real-time display of the measurement process, and a smooth operating experience.
Stable and Precise: Employing dual-wavelength infrared CO₂ analysis technology, combined with temperature regulation and atmospheric pressure measurement units, significantly improves the stability and accuracy of CO₂ measurements, effectively suppressing numerical drift caused by temperature fluctuations.
Comprehensive Functionality: Capable of simultaneously acquiring core photosynthetic indicators such as photosynthetic rate, transpiration rate, intercellular CO₂ concentration, stomatal conductance, and water use efficiency, as well as environmental data such as CO₂ concentration, humidity, radiation, temperature, and pressure.
Highly Customizable: Supports user-defined experimental annotations and allows real-time display and analysis of Pn curves, Tr curves, light-photosynthesis curves, and humidity-transpiration curves.
Professional Data Analysis: Supports comparative analysis of multiple data sets after experiments, automatically generating color-coded graphs for easy result comparison and research.
Large Screen Display: Equipped with a 7-inch high-sensitivity touchscreen, featuring a user-friendly interface and clear, intuitive data display.
Convenient Data Export: Supports Wi-Fi wireless data transfer and direct data copying via USB flash drive; plug and play, no driver installation required.
Cloud platform support: Data can be selectively or in batches wirelessly transmitted to a cloud platform, facilitating long-term data management, in-depth analysis, and visualization to support scientific research decision-making.
Long battery life: Built-in high-performance lithium battery supports 10-12 hours of continuous fieldwork on a full charge.
Portable design: The instrument is compact and lightweight, and comes with a dedicated carrying case for easy carrying by a single person for mobile measurements.
Measurement parameters
Air CO2 concentration: Non diffusive infrared CO2 analysis measurement range 0-3000 μ mol/mol (ppm) resolution 0.0005 error ≤ 3% FS
Environmental temperature: Measurement range -20-80 ℃ Resolution 0.001 Error ≤± 0.2 ℃
Environmental humidity: measurement range 0-100% RH resolution 0.001 error ≤± 1% RH
Leaf chamber temperature: measurement range -20-80 ℃ resolution 0.001 error ≤± 0.2 ℃
Leaf chamber humidity: measurement range 0-100% RH resolution 0.001 error ≤± 1% RH
Leaf surface temperature: measurement range -20-60 ℃ resolution 0.001 error ≤± 0.2 ℃
Atmospheric pressure: Measurement range 30-110kPa Resolution: 0.01 Error ≤± 0.06kPa
Photosynthetically active radiation (PAR): measurement range 0-3000 μ mol/(m2 · s) silicon photovoltaic cell with correction filter, resolution 0.001, error ≤± 5 μ mol/(m2 · s)
Photosynthetic rate (Pn): Unit: μ mol/(m2 · s) Resolution: 0.001
Pore conductance (Gs): Unit: mmol H2O/(m2 * s) Resolution: 0.001
Transpiration rate (Tr): Unit: mmol H2O/(m2 * s) Resolution: 0.001
Intercellular CO2 concentration (Ci): Unit: μ mol/mol Resolution: 0.001
Water use efficiency (WUE): Unit: μ molCO2/molH2O Resolution: 0.001
Respiratory rate (Rd): Unit: μ mol/(m2 * s) Resolution: 0.001
Transpiration ratio (TR): Unit: μ molH2O/mmolCO2 Resolution: 0.001
Instrument parameters
Channel Dimensions: Standard 3.3 cm × 3.3 cm
Core Hardware: ARM Cortex-A7 architecture, RK3288 quad-core processor, 1.88GHz clock speed
Storage Configuration: 1GB RAM, 16GB ROM
Data Interface: USB
Power Adapter: 100-240V wide voltage input, universally compatible
Battery Capacity: 8000mAh lithium battery
Charging Indicator: Red light indicates charging, green light indicates fully charged
Dimensions and Weight:
Main Unit: 325 mm × 160 mm × 230 mm, approx. 4 kg
Handle: 250 mm × 30 mm × 48 mm, approx. 0.7 kg
